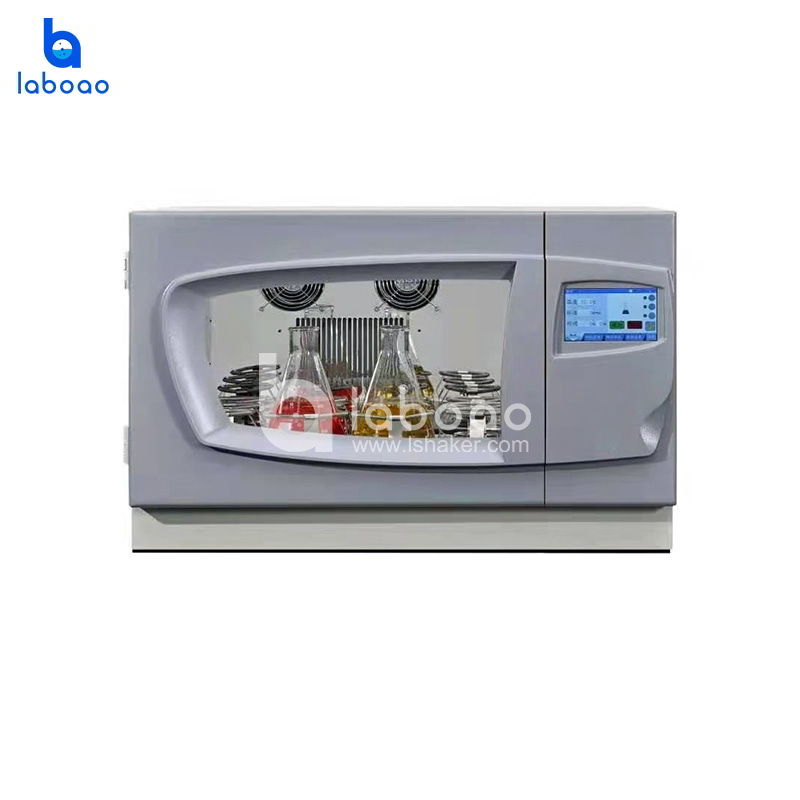

122L Stackable Horizontal Incubator Shaker

LJS-2020/LJS-2020R
LABOAO suppiled the LJS-2020 stackable horizontal incubator shaker are combination of traditional incubators and a laboratory shaker used to simultaneously incubate and shake or agitate samples. They are ideal for laboratory working on cell culture, cell aeration and solubility experiments.
  • AmplitudeΦ25mm
  • Oscillation modeOrbital/Reciprocating
  • Capacity122L
  • Rocking plate size542×445mm
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

OVERVIEW

This stackable shaking incubator are combination of traditional incubators and a laboratory shaker used to simultaneously incubate and shake or agitate samples. They are ideal for laboratory working on cell culture, cell aeration and solubility experiments.

FEATURES

1. Up to three units are superimposed, can also be used and placed on table independently.

2. In order to improve the culture effect, it can be switched Reciprocating/ Orbital type.

3. 7-inch LCD colorful touch screen, easy to operate.

4. The front door design is more ergonomic and easier to operate.

5. 304 stainless steel mirror arc corners material in the working chamber.

6. Single-axis balanced drive technology, ultra-low noise.

7. Intelligent sound and light alarm environment scanning microprocessor controller.

8. Operating parameters are encrypted and locked to avoid human mis operation.

9. Running parameter memory function to avoid tedious operation.

10. High-quality variable frequency motor, low vibration, low noise, high efficiency, wide speed regulation, maintenance-free, energy-saving and long-lasting operation.

11. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.

12. With power-off recovery function, the device can automatically resume operation according to the original set procedure after the external power supply suddenly loses power and then comes back on again.

13. The circuit for controlling acceleration ensures that the oscillator starts slowly, accelerates steadily, and ensures the safety of experimental samples.

14. The streamlined luxury machine shape with extremely aesthetic design concept, electrostatic color spray box, tempered double glass window.

SPECIFICATIONS

Model

LJS-2020

LJS-2020R

Control mode

P.I.D (Microcomputer environment   scanning micro processing chip)

Display mode

7 inch true color touch screen

Convection

Forced convection

Oscillation mode

Reciprocating/ Orbital Switch

Drive mode

Single-axis balanced drive

Room temp

15-35

Maximum stack

3sets

Curve programming

Repeat, pace, eight-segment curve   programming

Safety function

Upper and lower limit over-temperature   sound and light alarm; upper and lower limit over-speed alarm; sensor fault   identification, independent over-temperature protector, independent leakage   or over-current protection, refrigerating machine over-charge protection

Other function

Speed storage, automatic shutdown,   temperature and speed correction, watchdog timer, clock display, Power   failure recovery function, parameter memory, parameter encryption, one key to   restore factory settings

Cooling function

Air-cooled, 134a power controllable   refrigeration frost-free operation

Temp range

RT+5~60

4-60

Temp accuracy

0.1

Temp fluctuation

≤±0.2

Temp uniformity

≤±1 (at 37)

Speed range

30-300rpm

Speed accuracy

±1rpm

Amplitude

25mm

Timer range

0-999.59

Plate size

542*445mm

Plate quantity

1pcs

Max. capacity

250ml*30 or 500ml*20 or 1000ml*12 or 2000ml*6

Net weight

105kg

120kg

Volume

122L

Inner size

610*505*395mm

Dimension

910*710*630mm(one unit)

Others

Lighting/ UV light

Power

600w

800w

Voltage

AC 200~240V 50~60Hz

Inner chamber material

304 mirror stainless steel material

External material

High-quality ductile iron, channel   steel, angle steel, medium plate, cold rolled steel plate
