189L Stackable Horizontal Lab Incubator Shaker

LJS-2012R
LABOAO supplied the LJS-2012 stackable horizontal lab incubator shaker are combination of traditional incubators and a laboratory shaker used to simultaneously incubate and shake or agitate samples. They are ideal for laboratory working on cell culture, cell aeration and solubility experiments.
  • AmplitudeΦ25/50mm
  • Oscillation modeOrbital/Reciprocating
  • Capacity189L
  • Rocking plate size780×480mm
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

VIDEO

OVERVIEW

This stackable shaking incubator can be stacked with two or three sets together, occupying only the space of one shaker, and has two oscillation modes, cyclotron oscillation or reciprocating oscillation mode. The large internal space can hold a culture flask with a maximum capacity of 2L, which is very suitable for cell culture research.

FEATURES

Two oscillation modes, cyclotron oscillation or reciprocating oscillation mode.

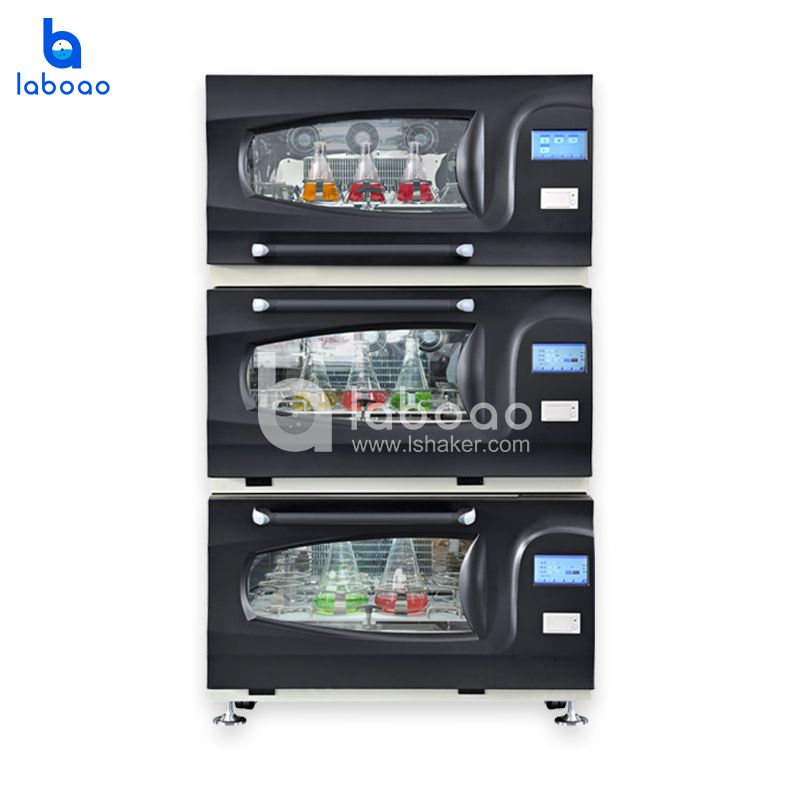

The three stacks are stacked together, but still occupy only one shaker area.

The humanized down-opening door design is in line with ergonomics.

The slide platform has a large bearing area and a smooth sliding.

The rocker is made of electroplated aluminum to avoid rust or corrosion.

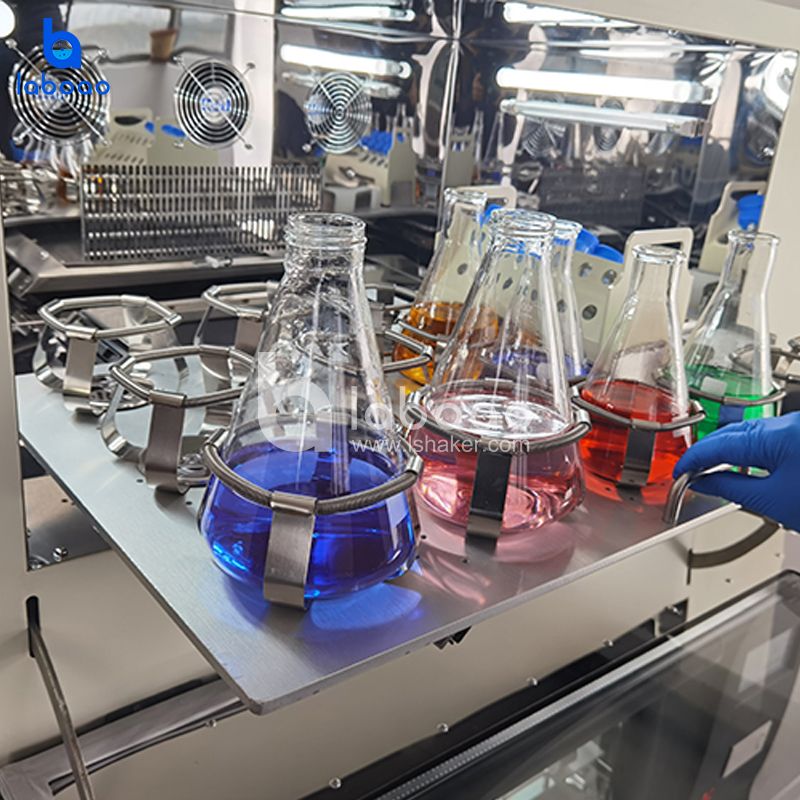

The large internal space can accommodate up to 2L of culture flasks.

Available in both temperature and low temperature ranges.

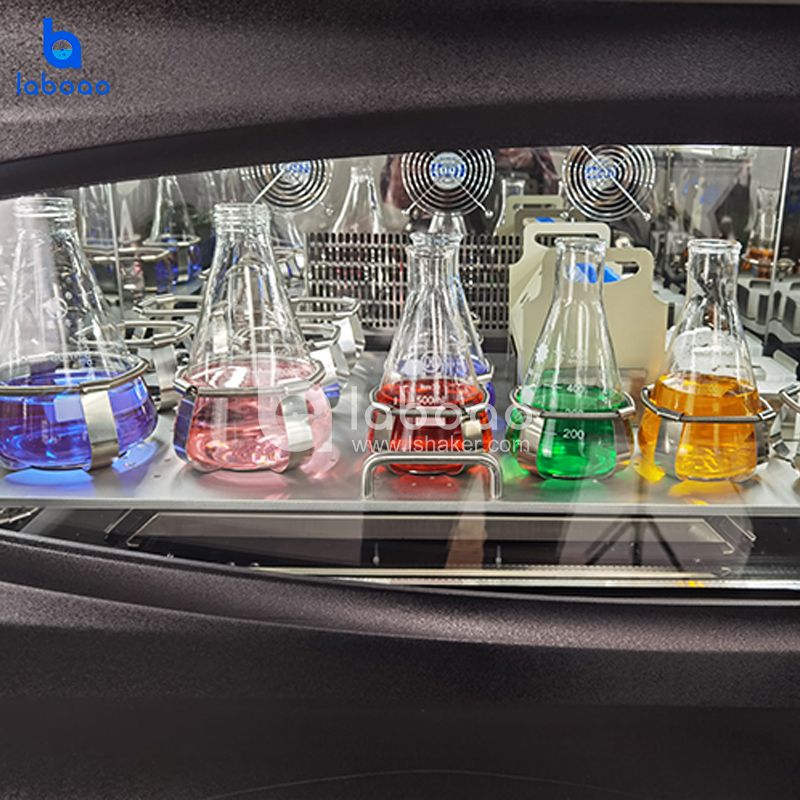

The transparent viewing window and built-in lighting design make it easy to view samples at any time.

Simultaneous observation of temperature, oscillation speed, time

Sound and light report alarm environment scanning processing chip, with more powerful data processing functions.

Eight sections of self-programming, each program can set different speed and time to realize the programming operation of speed and appointment time.

Independent overspeed sound/light alarm, independent leakage, and over-current protection devices do not affect other equipment.

The original single-axis drive mechanism in China is quiet and durable.

The oscillation frequency can be extended over a wide range to 50-300 rpm.

Unique high-precision frequency control system with frequency accuracy of ±1rpm.

Safety and fluorine-free refrigeration system in line with international environmental protection requirements

Run the parameter memory function to avoid cumbersome operations.

The line that controls the acceleration ensures that the shaker is slowly started and smoothly accelerated to ensure the safety of the experimental samples.

Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.

The unique slow start line prevents sudden starts and splashes, ensuring safe reagents.

AC induction long life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance free.

 With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.

 Unique motor overheating, temperature out of control automatic power off protection device.

The electrostatic color spray box is beautiful and rustproof, and has an aesthetic design concept.

Stainless steel mirror cavity, no rust and rust.

Made of high quality, high strength cold rolled steel, medium, channel, angle and cast iron.

Security

Leakage current and overcurrent protection systems ensure operator safety.

Ultra-temperature, over-speed sound and light alarm emergency control system to ensure sample safety.

Application range

Cell culture

Solubility test

Extraction experiment

Diagnostic test

Mixing samples

Bacterial suspension preparation

Dyeing and bleaching

Elution process

Hybrid experiment

SPECIFICATIONS

Model

LJS

-2012

LJS

-F2012

LJS

-D2012

LJS

-2012R

LJS

-F2012R

LJS

-D2012R

Control

P.I.D   (microcomputer environment scanning micro processing chip)

Display

LED   (large screen LCD dual display)

Cyclic   mode

Forced   convection

Oscillation   mode

Orbital

Reciprocating

Orbital

Orbital

Reciprocating

Orbital

Drive   mode

Single-axis   balancing device (Chinese patent ultra-low mute)

Temperature   range

RT+5℃-60℃

4℃-60℃

Temperature   accuracy

±0.1℃

Temperature   fluctuation

≤±0.2℃

Temperature   uniformity

≤±1℃(at 37℃)

Security   function

Upper   and lower limit over-temperature sound and light alarm; upper and lower limit   overspeed alarm, independent over-temperature protector; open door stop   protection; leakage or over-current protection device

Accessory   function

Speed   storage, one-button factory reset, call recovery, parameter memory,   temperature speed correction, clock display, room temperature / measured   temperature double display.

Programming   function

Repeat,   pacing, eight-segment curve programming

Speed   range

30-300rpm

Acceleration

Slow   start

Accuracy

±1rpm

Amplitude

25mm

25mm

50mm

25mm

25mm

50mm

Refrigerant

-

CFC-Free   (134A) fluorine-free safety refrigeration system

Cooler

-

200W

Heater

800W

Timing   range

0.999.59   hours / sustainable

Plate   size

780*480(mm)

Max   capacity

250ml*40/500*28/1000*15/2000*12

Plate   QTY

one

Net   weight

160kg

260kg

180kg

280kg

Inner   cavity size

870*550*395H(mm)

Dimensions

1150*780*640(single)   Without foot 90mm

1150*780*1280H   (Two stacks) Without foot 90mm

1150*780*1920H(Triple   stack) Without foot 90mm/ Padded high stool

Opening   method

The   following two layers: drop-down

The   third layer: upturn

Annex

UV   lamp, lighting

Power

980W

1200W

Motor

120W   inverter motor

power   supply

AC   200-240V 50-60HZ

Inner   cavity material

All   304 high quality imported stainless steel mirror panel

Box   material

High   quality and high strength channel steel, angle steel, cold rolled steel plate
