The test tube rotating mixer is a uniquely designed product with a gentle rotation speed. Through the adjustment of the test tube plate, the sample can be rotated at any angle. It is widely used in various mixing situations such as molecular biology, chemistry, and clinical applications. Different test tube plates can be installed at the same time, and different angles can be adjusted to improve experiment efficiency.
1. Small size and easy operation;
2. Five kinds of test tube plates are standard to meet the various needs of customers;
3. In the open state, lightly press the test tube plate to rotate in the opposite direction;
4. Low noise and stable operation;
5. High-performance motor with long service life.
Model | LTR-01 | LTR-02U |
Product name | Test tube rotating mixer | |

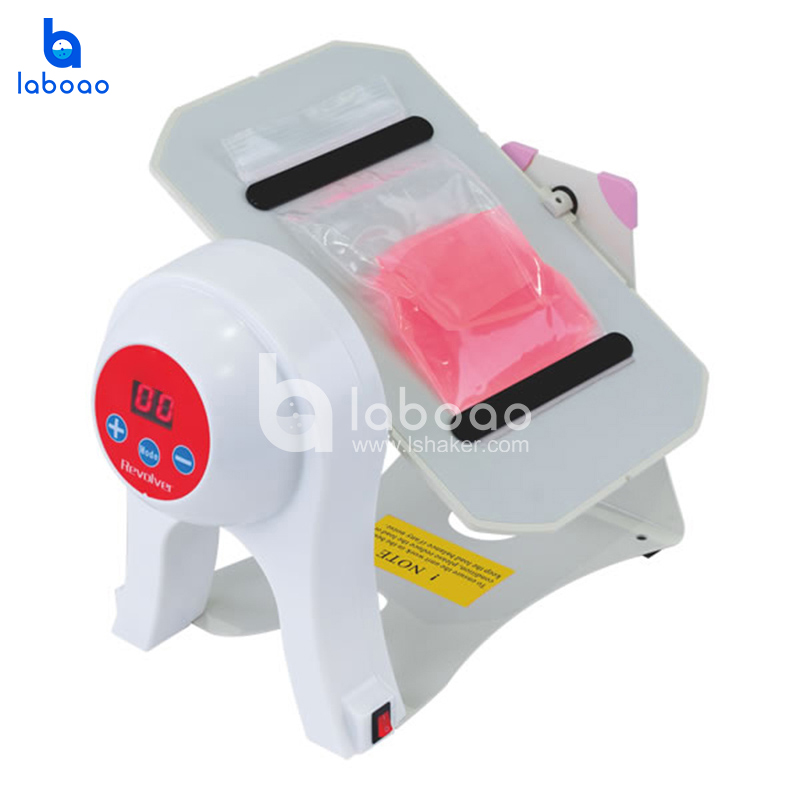

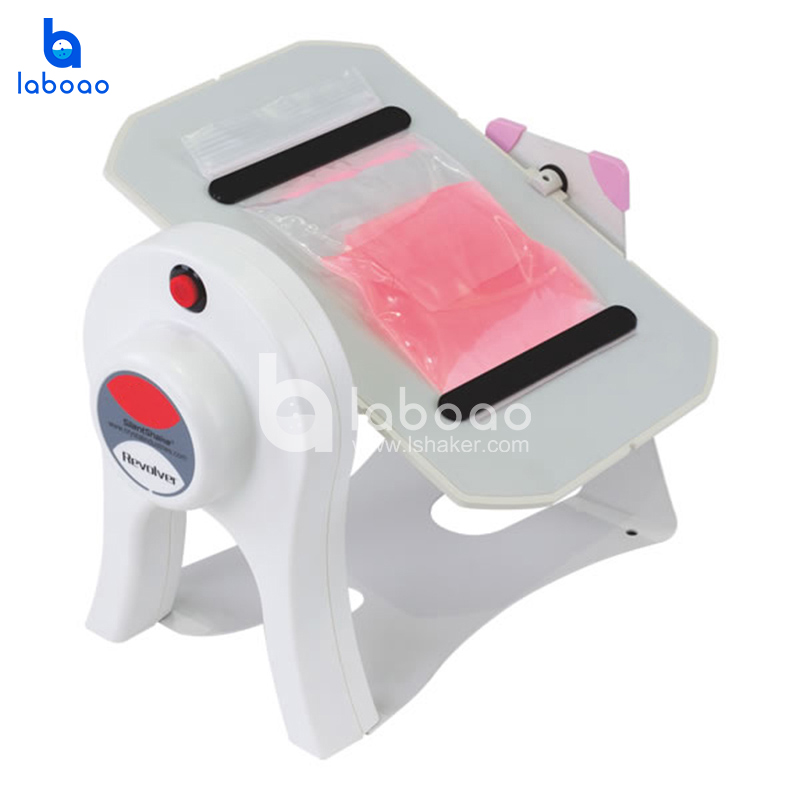

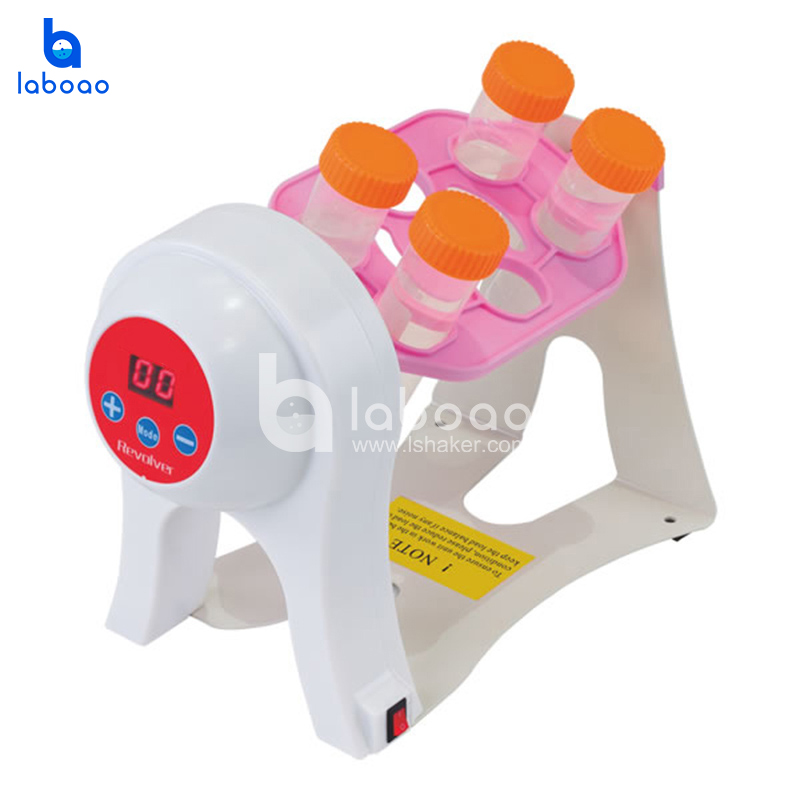

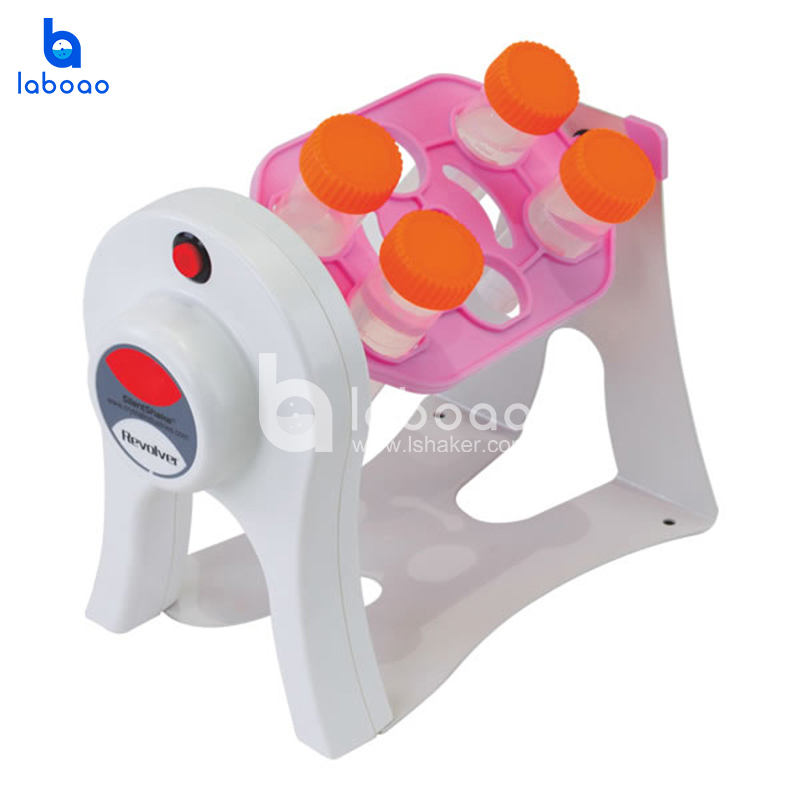

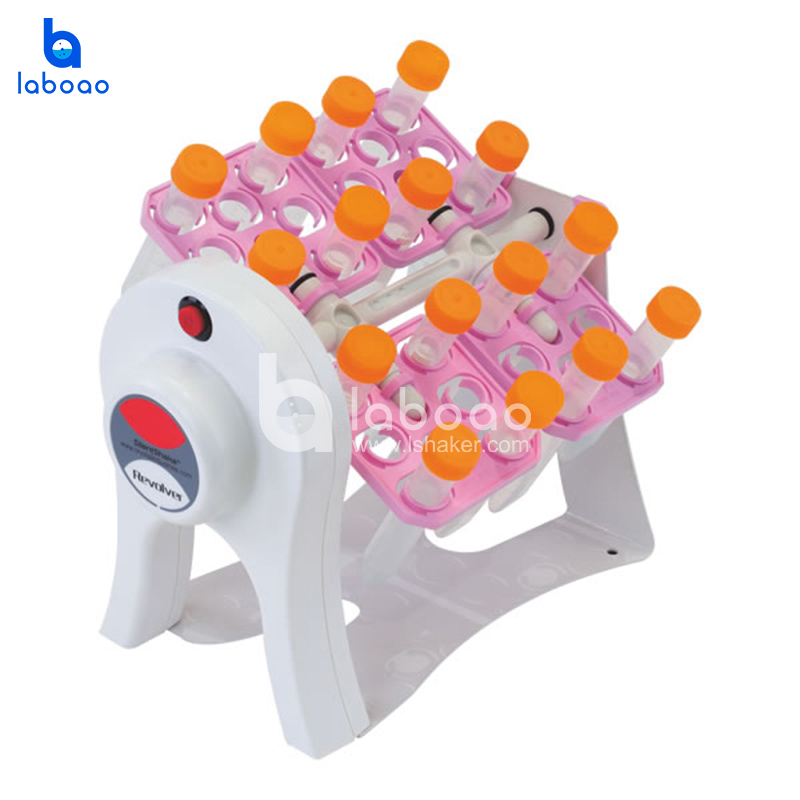

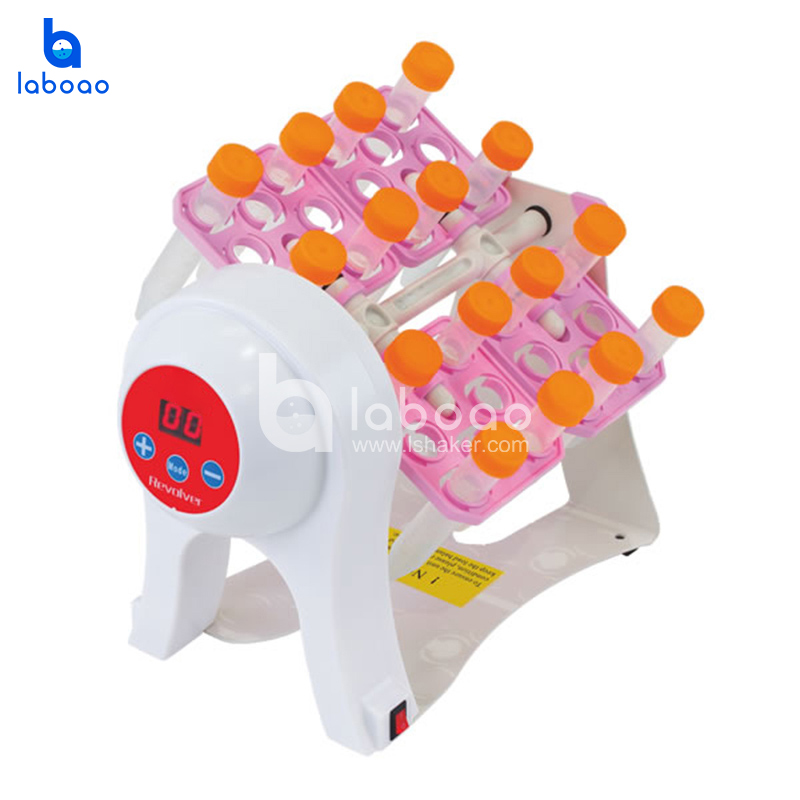

Main distinguishing features | Fixed speed | Speed display, adjustable speed |
Rotating speed | 16rpm | 10~40rpm |
Capacity | 84 x0.5ml test tube, 60 x1.5ml / 2.0ml test tube, 28 x5ml / 7ml test tube, 24x10ml test tube, 6x50ml test tube | |
Standard | Test tube holder: 2xTRA01, 2xTRA02, 2xTRA03, 2xTRA04, 1xTRA05 | |
Automatic call recovery function | YES | |
Ambient temperature | 4℃~60℃ | |
Dimensions (WxDxH) | 225x148x195mm | 260×148×195mm |
Power | 4W | 10W |
power supply | AC220±22V 50±1Hz | AC100~240V 50~60Hz |
Net weight | 0.8kg | 1kg |
Certification | CE, RoHS, WEEE | CE, RoHS, WEEE, cCSAus |
Accessories
Name | Model | Number |
10ml/15ml test tube fixture | TRA01 (standard) | 2 |
5ml/7ml test tube fixture | TRA02 (standard) | 2 |
1.5ml/2ml test tube clamp | TRA03 (standard) | 2 |
0.5ml/0.8ml test tube clamp | TRA04 (standard) | 2 |
50ml l test tube fixture | TRA05 (standard) | 1 |
Magnetic board accessories | TRA07 (optional) | 1 |
Magnetic plate bead | TRA08 (optional) | 4 |
50ml test tube assembly | TRA30 (standard) | 1 |
Bracket | TRA31 (standard) | 1 |
