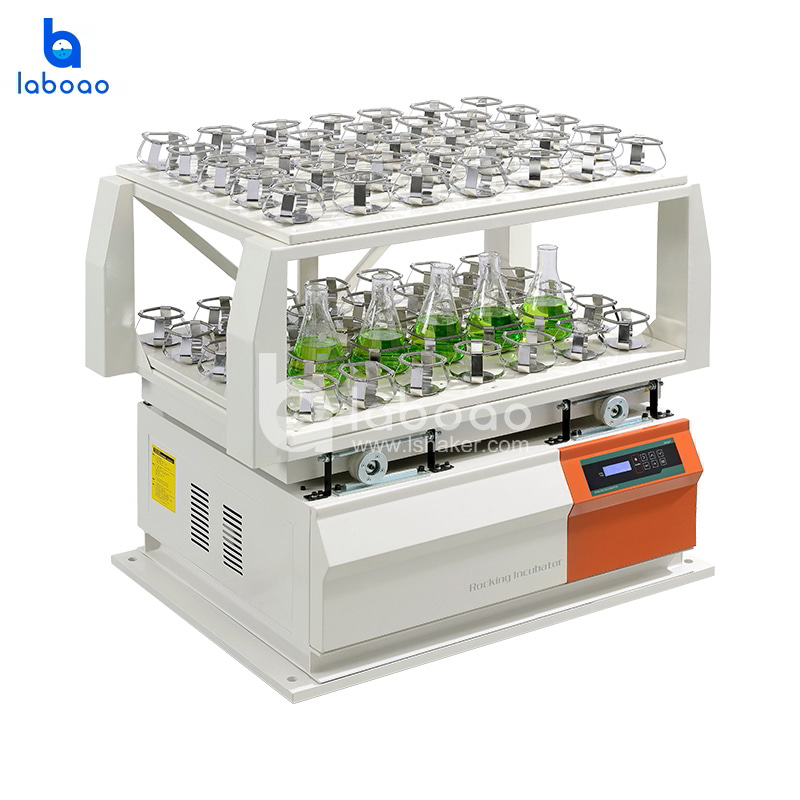

Reciprocating Large Capacity Orbital Shaker

LH-331/LH-332/LH-3312
LABOAO supplies reciprocating large capacity orbital shaker for centralized constant temperature and cluster shaking in specific constant temperature rooms. The production process takes into account the influence of temperature, humidity, acidity and other factors on product reliability, and the original single-axis drive mechanism is silent and durable.
  • AmplitudeΦ25mm
  • Oscillation modeReciprocating
  • Rocking plate size840x620mm/1108x740mm
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

The reciprocating large capacity orbital shaker is suitable for centralized constant temperature and cluster oscillation in a specific constant temperature room. Not only can it provide a high level of oscillation efficiency for mass production operations and biopharmaceutical research applications in pilot trials and mass strain screening, but also has strong economic and practicality.

FEATURES

1. Eight sections of self-programming, each program can set different speed and time to realize the programming operation of speed and appointment time.

2. Automatic operation, automatic stop, timed operation, clock display, call recovery, parameter memory.

3. Watchdog timers, independent overspeed sound/light alarms, independent leakage, and over-current protection devices do not affect other equipment.

4. The PID microprocessor control/monitoring system provides simple button operation and easy programming of time and speed.

5. The original single-axis drive mechanism in China is quiet and durable.

6. The most advanced finishing technology in the country ensures the stability and reliability of mechanical operation.

7. The key parts of the movement are made of expensive chrome alloy material, high quality cast iron and original imported bearings.

8. The last set speed is automatically memorized and slowly accelerated to the last running speed after power on.

9. The unique slow start line prevents sudden starts and splashes, ensuring safe reagents.

10. Unique motor overheating, temperature out of control automatic power off protection device.

11. Unique high-precision frequency control system with frequency accuracy of ±1rpm.

12. The most advanced large torque motor, maintenance-free, and guaranteed continuous operation.

13. The electrostatic color spray box is beautiful and rustproof, and has an aesthetic design concept.

14. The cabinet is made of high quality, high strength cold rolled steel, medium, channel, angle and cast iron.

SPECIFICATIONS

Model

LH-331

LH-332

LH-3312

Control method

PID microcomputer environment scanning   micro-processing chip control

Display method

LCD liquid crystal display

Programming control

Eight-segment user-programming

Safety protection

Automatic operation, automatic stop,   timed operation, clock display, call recovery, parameter memory

Accessory function

Watchdog timer, independent overspeed   sound/light alarm, independent leakage, leakage overcurrent protection device

Cyclic mode

Natural convection

Oscillation mode

Reciprocating   oscillation

Drive mode

Track balanced drive

Environmental requirements

User-specific thermostat or   environment

Rotation frequency

30-300rpm

Timing range

0-999.59 hours / sustainable

Rotation accuracy

±1rpm

Pendulum amplitude

Φ25mm

Rocker size

840*620(mm)

1108*740(mm)

840*620(mm)

Number of rocking plates

one

one

two

Net weight

200kg

250kg

250kg

Dimensions

900*650*480 (mm)

1210*795*480 (mm)

910*680*850(mm)

Outer box material

High quality and high strength cast   iron, channel steel, angle steel, cold rolled steel

Power supply

AC 200-240V 50-60HZ

Motor

120W Inverter motor)

250W Inverter motor

250W Inverter motor

Power

150W

280W

280W
