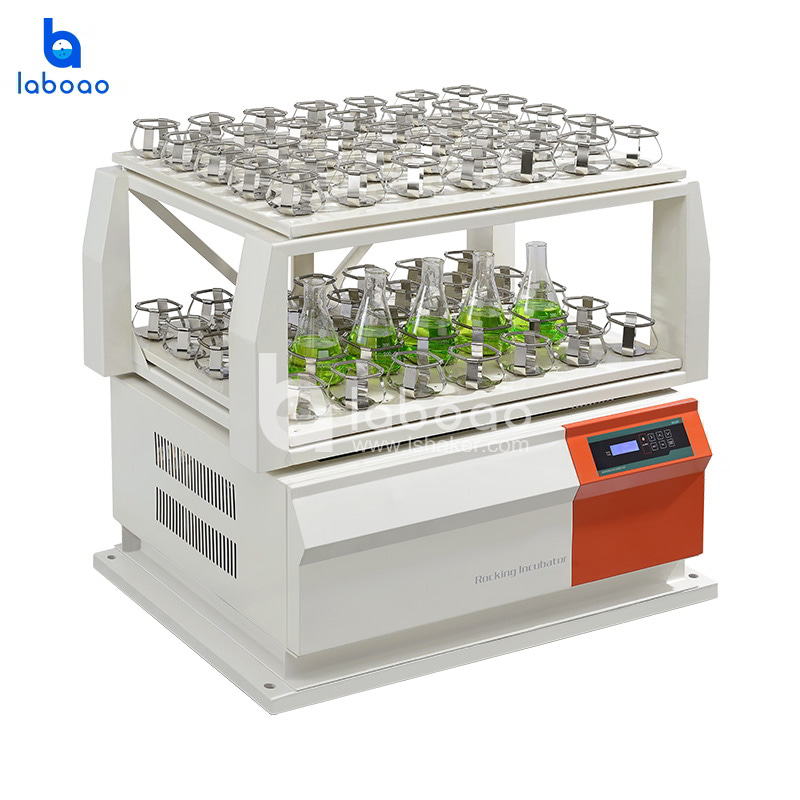

LABOAO supplies large capacity horizontal shakers for centralized constant temperature and cluster shaking in specific constant temperature rooms. The production process takes into account the influence of temperature, humidity, acidity and other factors on product reliability, and the original single-axis drive mechanism is silent and durable.
  • AmplitudeΦ50mm
  • Oscillation modeOrbital
  • Rocking plate size1080x680mm
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat



LH series flask shaker is suitable for centralized constant temperature and cluster oscillation in a specific constant temperature room. Not only can it provide a high level of oscillation efficiency for mass production operations and biopharmaceutical research applications in pilot trials and mass strain screening, but also has strong economic and practicality.


LH-300D/311D/322D is a single-layer type with an amplitude of 50mm.

Eight sections of self-programming, each program can set different speed and time to realize the programming operation of speed and appointment time.

Automatic operation, automatic stop, timed operation, clock display, call recovery, parameter memory.

 Watchdog timers, independent overspeed sound/light alarms, independent leakage, and over-current protection devices do not affect other equipment.

The PID microprocessor control/monitoring system provides simple button operation and easy programming of time and speed.

The original single-axis drive mechanism in China is quiet and durable.

The most advanced finishing technology in the country ensures the stability and reliability of mechanical operation.

The key parts of the movement are made of expensive chrome alloy material, high quality cast iron and original imported bearings.

The last set speed is automatically memorized and slowly accelerated to the last running speed after power on.

The unique slow start line prevents sudden starts and splashes, ensuring safe reagents.

Unique motor overheating, temperature out of control automatic power off protection device.

Unique high-precision frequency control system with frequency accuracy of ±1rpm.

The most advanced large torque motor, maintenance-free, and guaranteed continuous operation.

The electrostatic color spray box is beautiful and rustproof, and has an aesthetic design concept.

The cabinet is made of high quality, high strength cold rolled steel, medium, channel, angle and cast iron.




Control   method

PID   microcomputer environment scanning micro-processing chip control

Display   method

LCD liquid   crystal display

Programming   control

Eight-segment   user-programming

Safety   protection

Automatic   operation, automatic stop, timed operation, clock display, call recovery,   parameter memory

Accessory   function

Watchdog   timer, independent overspeed sound/light alarm, independent leakage, leakage   overcurrent protection device

Cyclic mode

Natural   convection

Oscillation   mode

Orbital   oscillation

Drive mode

Multidimensional   drive

Environmental   requirements

User-specific   thermostat or environment

Rotation   frequency


Timing range

0-999.59   hours / sustainable

Rotation   accuracy


Pendulum   amplitude


Rocker size


Number of   rocking plates


net weight




Outer box   material

High quality   and high strength cast iron, channel steel, angle steel, cold rolled steel

Power supply

AC 200-240V   50-60HZ


1100W   (Inverter motor)
