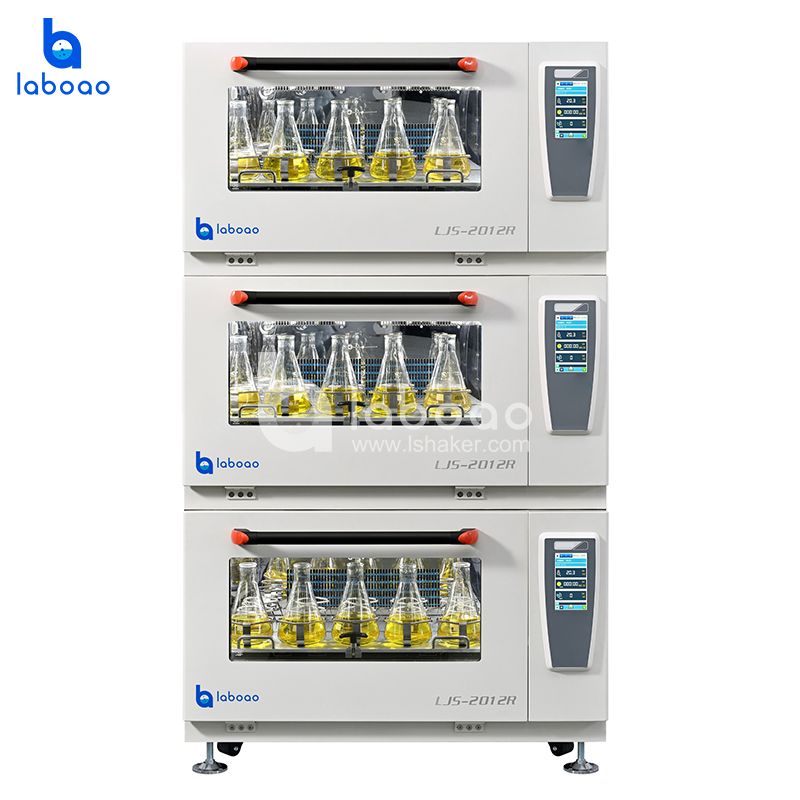

250L Stacked CO2 Incubator Shaker
250L Stacked CO2 Incubator Shaker

250L Stacked CO2 Incubator Shaker

LIS-4C/LIS-4C5
LAOBAO supplied the CO2 shaking incubator is an advanced instrument for bacteria culture, fermentation, crossover and biochemical reactions, enzymes, cell tissue research, etc., cell, tissue, and bacterial culture with a wide range of temperature, oscillation frequency and higher requirements.It uses three-axis eccentric balance movement, which is stable and reliable and has long service life.
  • AmplitudeΦ26/50mm
  • Oscillation modeOrbital
  • Capacity250L
  • Rocking plate size770x470mm
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

The speed control system has a speed terminal feedback system to keep the machine oscillating with high precision. The combination and innovation of PID control technology and fuzzy control technology realize the high precision control within the temperature range. Application of variable frequency compressor refrigeration, high efficiency, small temperature fluctuation, stable control. It can be equipped with advanced WiFi monitoring system, which can remotely monitor the same machine by multiple mobile phones at the same time, and timely obtain the alarm information such as no air intake, so as to quickly deal with the emergency situation and protect the cultured cells. Suitable for medium to large scale experiments.

FEATURES

1. Advanced self-adaptive full-automatic PID control According to the difference of each machine, self-learning and setting of relevant parameters to ensure that temperature and speed achieve high-precision and high-stability control.

2. Strong cooling capacity Can be cooled to 18 °C below ambient temperature.

3. Can be arbitrarily superimposed and combined.

4. Two-way UV sterilization the cavity is equipped with two sets of UV sterilization components to enhance the sterilization effect and reduce the dead angle of sterilization.

5. DC brush less motor drive Low noise, high efficiency, maintenance-free, long life, minimal heat, and does not affect the temperature in the cavity.

6. Multiple sound and light alarm and protection functions Over temperature alarm, over speed alarm, sensor failure alarm, timing alarm, door open alarm, over concentration alarm, over humidity alarm, leakage protection, no air intake alarm (CO2 function machine).

8. 12-segment full-automatic program control function You can set 12 different speeds, temperatures and times, and then run according to these 12-segment programs.

9. Automatic recovery of incoming calls When a power outage is encountered during operation, the call will resume automatically according to the original procedure.

10. Powerful data storage function It can store data for more than 2 years of continuous operation. Record one data per minute.

11. Real-time data query function the operation data of the last 7 days can be queried on the display. Record one data per minute.

SPECIFICATIONS

Model

LIS-4C

LIS-4C5

Name

250L,   Touch Screen, with Co2

250L,   Touch Screen, With Co2, Amplitude 50

Rocking   Plate size

770x470mm

Max   capacity

Flask   clamp:50mlx104 / 100mlx45 / 150mlx45 / 200mlx45 / 250mlx40 / 500mlx25 /   1000mlx15 / 2000mlx12 / 5000ml (Thomson)x6

Paste   pads:50mlx112 / 100mlx72 / 150mlx60 / 200mlx45 / 250mlx40 / 500mlx28 /   1000mlx15 / 2000mlx12 / 5000ml (Thomson)x8

Volume

250L

Maximum   load

20kg

Temp   control range

Below   room temperature 18 ℃ -60 ℃ (minimum 4 ℃)

Temp   control accuracy

+/-0.1℃

Temp   uniformity

+/-   0.3 ℃ (@37 ℃)

Rotation   speed

0(stop),30-300rpm

Speed   accuracy

+/-1   rpm

Amplitude

26mm

50mm

CO2   sensor

IR   (infrared)

CO2   concentration control range

0-20%

CO2   concentration control accuracy

+/-0.1%

Temperature   recovery time after opening the door for 30s

≤6   min (@37℃)

CO2   concentration recovery time after 30s of door opening and restart

≤6   min (@5%)

Humidity   type

Natural   humidification

Humidity

95%

Programmable   segment

12   segments

Illumination

Two-way   lighting

Sterilize

UV   sterilization

Door   opening method

Down   open

Parameter   protection

password   protection

Curve   display type

Humidity   curve, speed curve, CO2 concentration curve, humidity curve

Display   method

Capacitive,   10-inch color touch screen

Timing   range

0-999   hours and 59 minutes

USB   flash drive export data

YES

Days   of operation parameters can be checked on the screen

Within   seven days

Run   data storage cycle

More   than 912 days

Operation   data storage interval

1   minute

Data   storage content

Running   time, temperature parameters, speed parameters, humidity parameters, running   status

Automatic   defrost

YES

Turn   off screen display automatically

YES

Auto   lock screen

YES

The   third layer shake plate height

1345mm

Rocker   with track

YES

Noise   level

≤55dB(When   cooling)

Washable

YES

Interface   language

English

Automatic   call recovery function

YES

heating   power

≤850W

Cooling   power

70-180W

power

≤1000W

power   supply

AC 220V+/-22V, 50/60HZ

Active   humidification (optional)

10%   -95% above ambient humidity optional

WIFI   mobile monitoring (optional)

Optional

Computer   monitoring (optional)

Optional

Shading   plate (optional)

Optional

Net   weight

260kg

270kg

Inner   cavity working height

295mm

Dimensions

1240*785*(535+80   Foot height) mm
