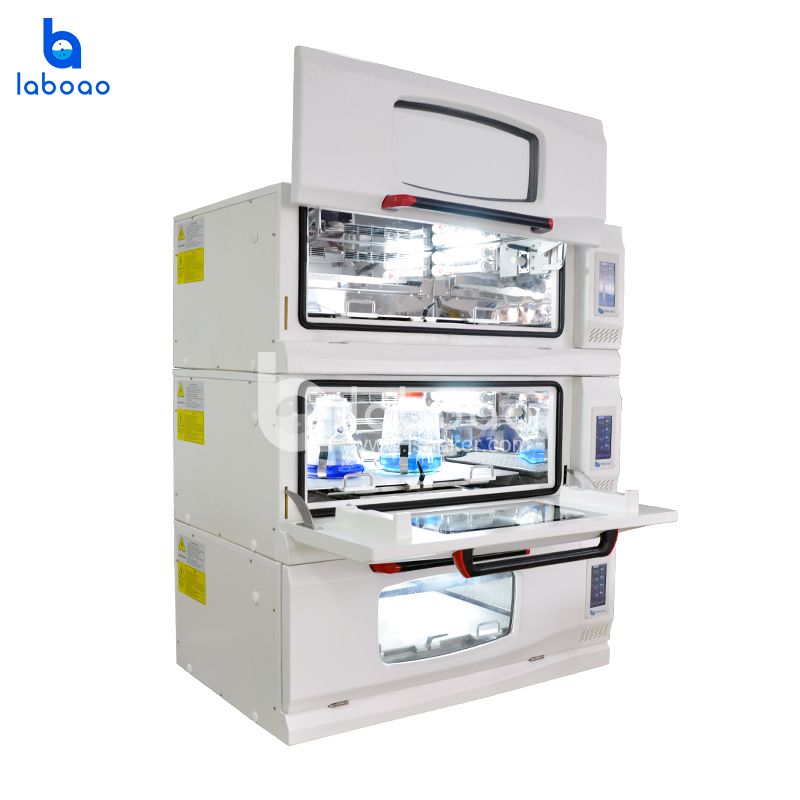

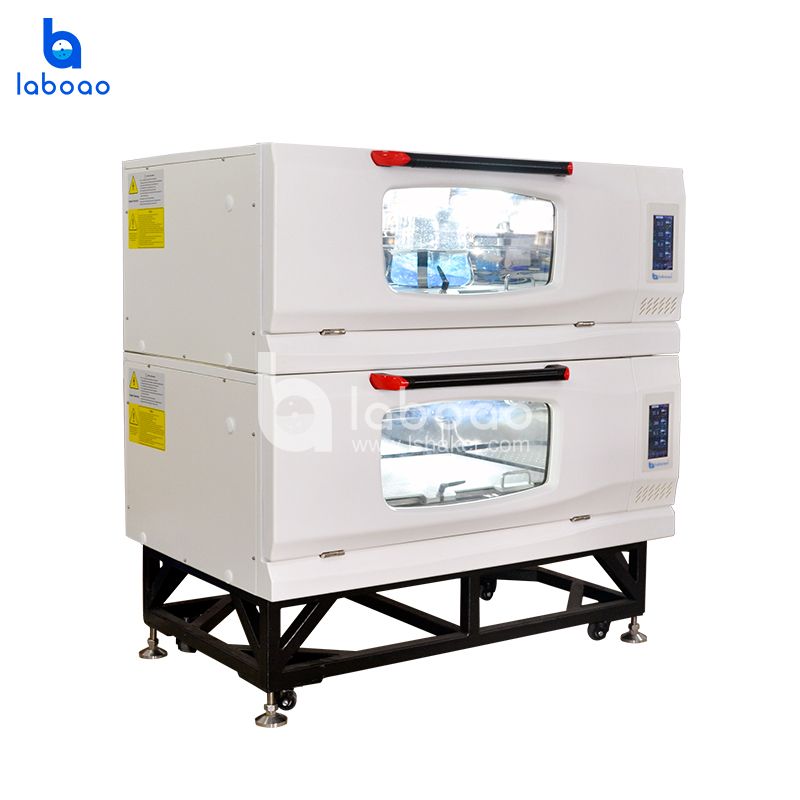

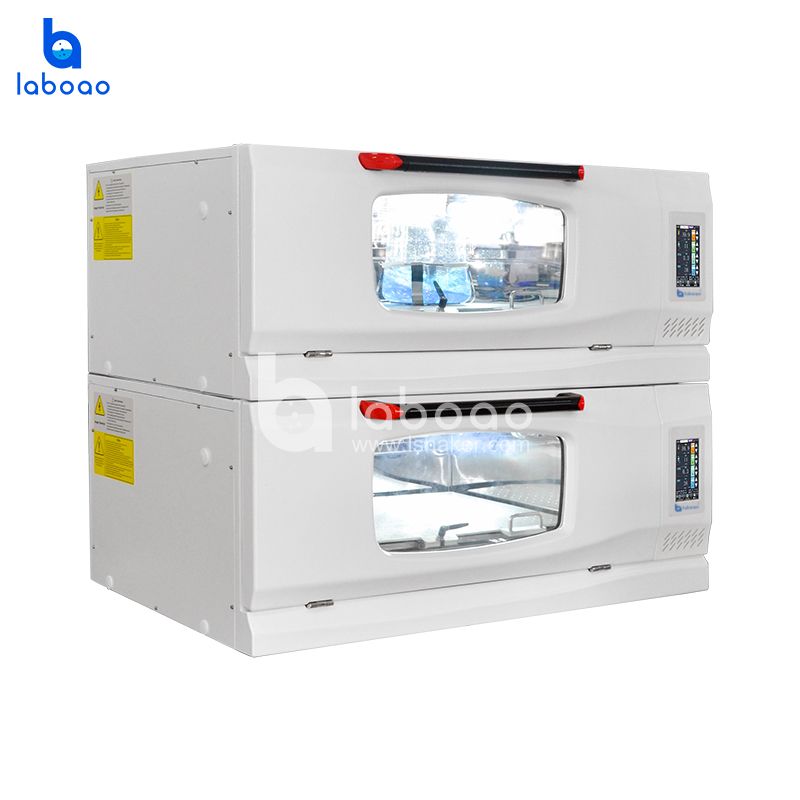

High Precision Stackable CO2 Incubator Shaker

LIS-18
The CO2 Incubator Shaker features Temperature, Shaking, CO2 Concentration, and Humidity controls. Its stackable design helps maximize floor space, with the capability to stack up to three units high.
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

In addition to having the same functions as the IS-9 series, this constant temperature oscillator also achieves extremely precise temperature uniformity. In particular, the outer shell is made of light and strong material, which greatly reduces the total weight. The appearance is streamlined and more modern. At the same time, the thermal insulation performance is improved, and the variable frequency refrigeration technology is added to expand the temperature control range, reduce energy consumption, and provide a better platform for cell culture.

FEATURES

1. 7" High-Res Color Touch Screen with intuitive graphic interface

2. Chamber design features smooth rounded internal corners for easy cleaning

3. Capacity is 6 x 5L Erlenmeyer shaker flasks

4. Infra-Red(IR) CO2 sensor for precise arid reliable CO2 detection

5. Optional WiFi and RDS485 monitorin and control

6. Set of UV f fights for easy sterilization

7. Audible and visual alarms

8. Mirror finish, pharmaceutical grade stainless steel chamber

9. Stackable design up to 3 units.

10. 25mm and 50mm orbit models available

SPECIFICATIONS

Model

LIS-18

LIS-18C

LIS-18C5

Temp. Range

Room Temp. Minus 20℃~60℃ (Lowest Temp. is 4℃)

Power

≤1000W

Speed

0 (Stop)，30~300rpm

Speed Accuracy

±1rpm

Orbit Diameter

φ26mm

φ50mm

CO2 Sensor

NA

IR

CO2 Control Range

NA

0~20%

CO2 Display Accuracy

NA

0.1

CO2 Control Accuracy

NA

±0.2%(@ 5%)

Recover Time on the Temp. Close   Door

≤6min（@ 37℃）

Recover Time on the CO2 Close Door

NA

≤6min（@ 5%）

Application range of CO2 temperature

NA

5~60℃

RH Type

Active Humidification

Max. Humidity

Ambient Rh~95%

Programing Numbers

12 Sections

Disinfection

UV

Door Open Direction

Downward

Display

7” Color Capacitance Touch Screen

Touch Screen Type

Capacitance Type

Auto-lock

Yes

Auto-close Screen

Yes

Protect Set Parameters

Passwords Protect

Display the Date

In a week

Date Curve Display

Temp. Curve,
    Speed Curve,

Temp. Curve, Speed Curve,
    CO2 Curve, RH Curve

Max. Capacity

Clamp Capacity: 25mlx134/   50ml×134/ 100ml×60/ 150ml×60/ 200ml×60/   250ml×60/ 500ml×32/ 1000ml×22/   2000ml×15/5000ml(Thomson)×6 Sticky   Mat: 25mlx134/ 50ml×187/   100ml×112/ 150ml×104/ 200ml×84/ 250ml×76/   500ml×40/ 1000ml×28/   2000ml×15/5000ml(Thomson)×8

Max. Load

20Kg

Platform Dimensions

900×560mm

Temp. Uniformity

≤±0.15℃（@ 37℃）

Temp. Volatility

≤±0.12℃（@37℃）

Temp. Display Accuracy

0.1℃

Heat Power

≤800W

Cool Power

≤300W

Automatical Defrost

Yes

Timer

0-999Hours59min.

U Disk Download Date

Yes

Date Store Years

＞912 days

Date Store Time

1 min.

Date Store Types

Time, Temp, Speed, Machine Status

Time, Temp, CO2%, Speed, RH,   Machine Status

Noise Level

≤55dB

Water Sparge Resistant

Yes

Interface Languages

Chinese or English

Auto-run after Power Recovery

Yes

RH Control

Option

Passive Humidifier AutomaticWater

Option

Mobile Monitor and Control by WiF

Option

PC Monitor and Control by RS485   (Option)

Option

Net Weight

200Kg

Internal Dimensions

985×775×444mm

Outside Dimensions

1355×875×535mm
