Small Capacity Benchtop Lab Incubator Shaker

LH-103B/LH-100B/LH-200B
The small capacity benchtop lab incubator shaker supplied by LABOAO can meet most organic culture experiments. The shaker can be placed on the table or on the balanced floor. It is suitable for cell culture, extraction experiments and other experiments. It is a standing instrument in the laboratory.
  • AmplitudeΦ25mm
  • Oscillation modeReciprocating
  • Capacity18L/54L/69L
  • Rocking plate size260x260mm/400x370mm/420x400mm
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

VIDEO

OVERVIEW

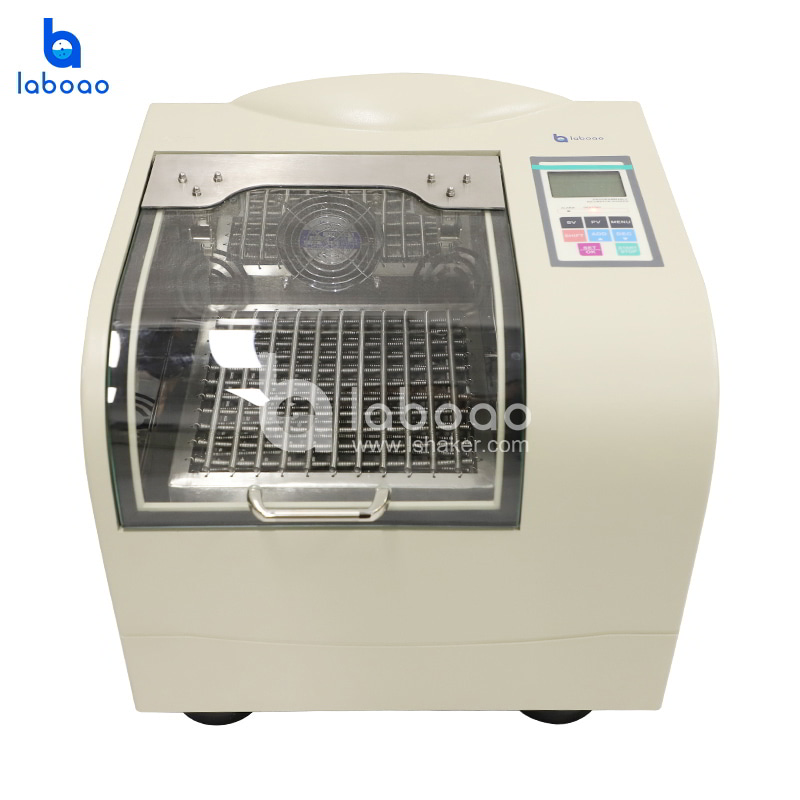

The small benchtop incubator shaker for lab has a stainless-steel universal clamp, digital display temperature control, stepless speed regulation and good thermal cycle function. It is a multi-purpose biochemical device, which is a plant, biology, microbiology, genetics, virus, environmental protection, medicine and other scientific research.  education and production departments for precision culture preparation of indispensable laboratory.

FEATURES

1. The original patented technology of the original single-axis balance drive balancing device (patent type: a single-axis drive rocking balance mechanism; guarantees extremely low energy consumption and noise.

2. The oscillation frequency can be extended over a wide range to 30-400/600 rpm.

3. Intelligent sound and light alarm environment scanning microprocessor controller.

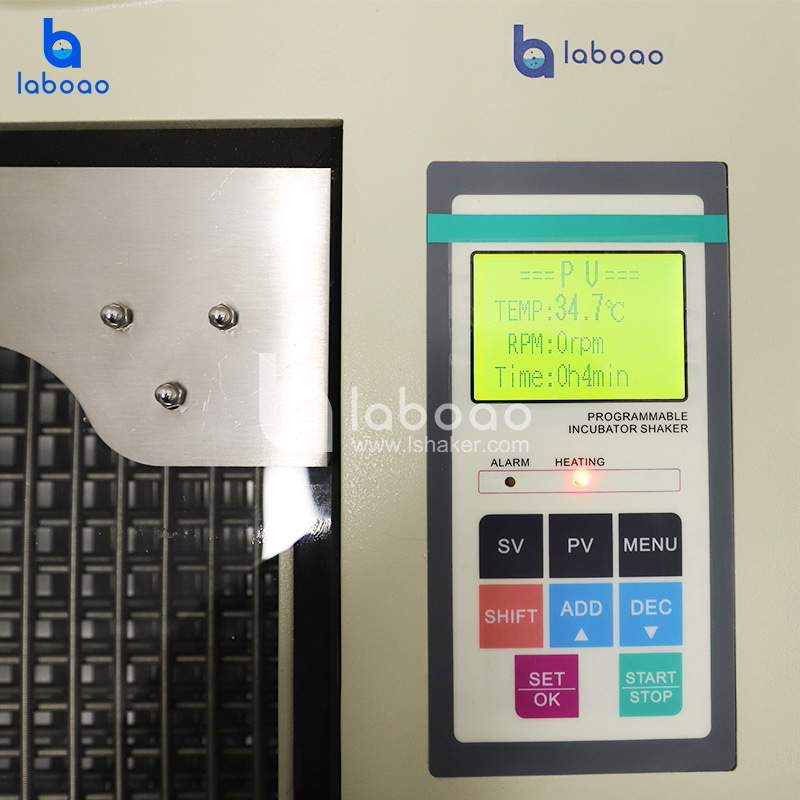

4. The LCD large-screen backlit LCD display double displays each set parameter and measured parameter.

5. A safe, fluorine-free refrigeration system that meets international environmental requirements.

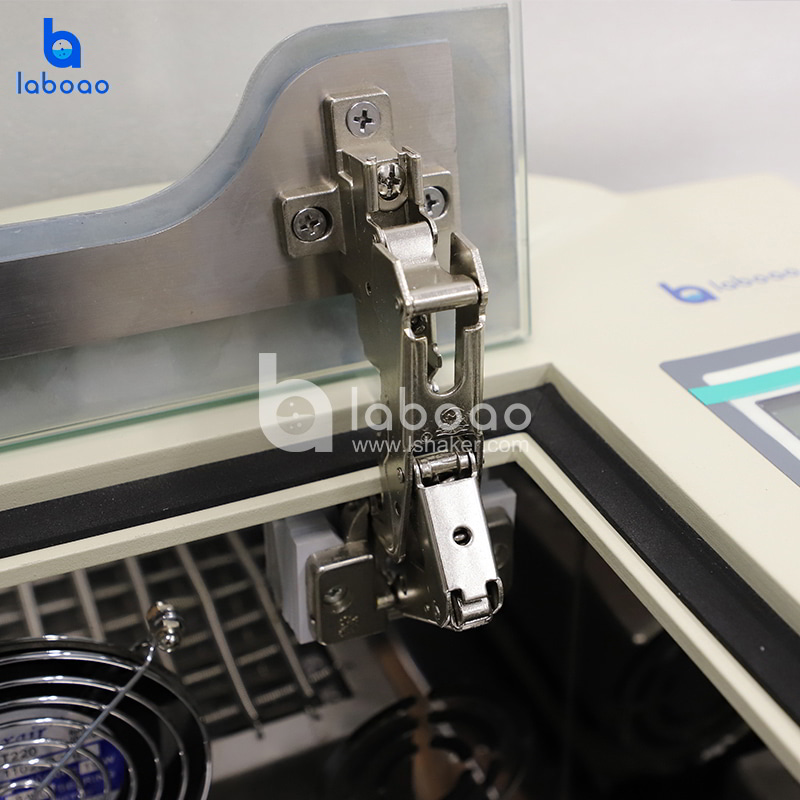

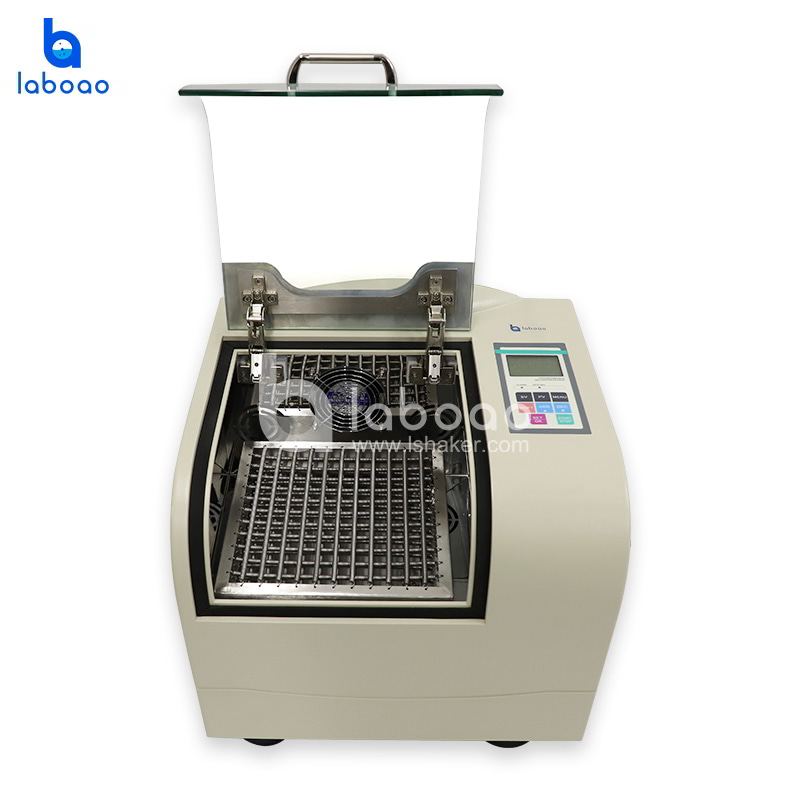

6. Elastic cylinder support is used to ensure smooth opening and closing of the cover.

7. Run the parameter memory function to avoid cumbersome operations.

8. AC induction long life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance free.

9. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.

10. With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.

11. The line that controls the acceleration ensures that the shaker is slowly started and smoothly accelerated to ensure the safety of the experimental samples.

12. Streamlined luxury style with auspicious design concept, ABS special engineering plastic case, large screen tempered hot bending glass window.


Application range

Cell culture

Extraction experiment

Mixing samples

Dyeing and bleaching

Hybrid experiment

Solubility test

Plasmid purification

Bacterial suspension preparation

Elution process

Protein

SPECIFICATIONS


Model

LH-103B

LH-100B

LH-200B

Control   method

P.I.D(Microcomputer   environment scanning micro processing chip)

Display   method

LCD   (Large screen LCD dual display)

Cyclic   mode

Forced   convection

Oscillation   mode

Rotary   oscillation

Drive   mode

Single-axis   balancing device (Chinese patent)

Environmental   requirements

Temperature   25 ° C, humidity 20% -90%

Temperature   control range

Room   temperature +5-60

4-60

Temperature   accuracy

±0.1

Temperature   uniformity

±1

Performance

Frequency   Range

30-400rpm

Rotation   accuracy

±1rpm

Pendulum   amplitude

φ25mm

Security   function

Upper   and lower temperature deviation alarm; upper- and lower-line speed deviation   alarm, independent over-temperature protector; open door stop protection;   leakage protection, chiller overload protection.

Accessory   function

Speed   storage, call recovery, parameter memory, temperature speed correction, clock   display, room temperature / measured temperature double display.

Programming   function

Repeat,   step, eight-segment curve programming settings.

The   refrigerant

-

-

CFC-Free   (134A) fluorine-free safety refrigeration system

Cooler

-

-

118W

Heater

280W

490W

560W

Timing   range

0-999.59h/   Sustainable

Standard   sizes

Rocker   size

260*260(mm)

400*370(mm)

420*400(mm)

Number   of rocking plates

one

Gross   weight

31kg

72kg

100kg

Net   weight

54kg

94kg

132kg

Inner   cavity size

360*340*280(mm)

410*450*300(mm)

460*500*350(mm)

Dimensions

440*419*420(mm)

610*610*510(mm)

700*740*560(mm)

Package   dimensions

560*530*560(mm)

740*710*530(mm)

805*900*760(mm)

Opening   height

746(mm)

920(mm)

990(mm)

Power

280W

490W

580W

Materia

Motor

60W   inverter motor

Inner   cavity material

High   quality imported stainless steel mirror panel

Outer   box Materia

ABS   special engineering plastic case


Model

Triangle   flask capacity (max)

LH-103B

50ml*9,100ml*9,250ml*5

LH-100B

50ml*30,100ml*25,250ml*16,500ml*10,1000ml*6

LH-200B

50ml*36,100ml*30,250ml*16,500ml*11,1000ml*9,2000ml*5


OPTIONAL

Optional

LH-103B

LH-100B

LH-200B

Test tube rack

18ml*56

18ml*104

18ml*120

Spring rocker

yes

yes

yes
