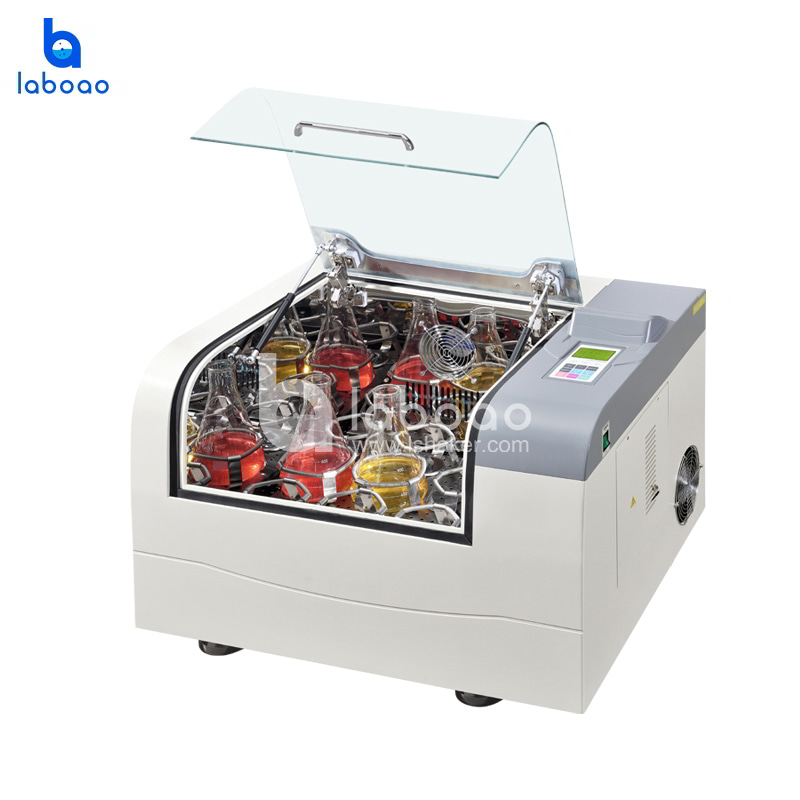

Small Capacity Benchtop Shaking Incubator for Lab

LH-103D/LH-100D/LH-200D
The small capacity benchtop lab incubator shaker supplied by LABOAO can meet most organic culture experiments. The shaker can be placed on the table or on the balanced floor. It is suitable for cell culture, extraction experiments and other experiments. It is a standing instrument in the laboratory.
  • AmplitudeΦ25mm
  • Oscillation modeReciprocating
  • Capacity18L/54L/69L
  • Rocking plate size260x260mm/400x370mm/420x400mm
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

The small benchtop incubator shaker for lab has a stainless-steel universal clamp, digital display temperature control, stepless speed regulation and good thermal cycle function. It is a multi-purpose biochemical device, which is a plant, biology, microbiology, genetics, virus, environmental protection, medicine and other scientific research.  education and production departments for precision culture preparation of indispensable laboratory.

FEATURES

1. The original patented technology of the original single-axis balance drive balancing device (patent type: a single-axis drive rocking balance mechanism; guarantees extremely low energy consumption and noise.

2. The oscillation frequency can be extended over a wide range to 30-400/600 rpm.

3. Intelligent sound and light alarm environment scanning microprocessor controller.

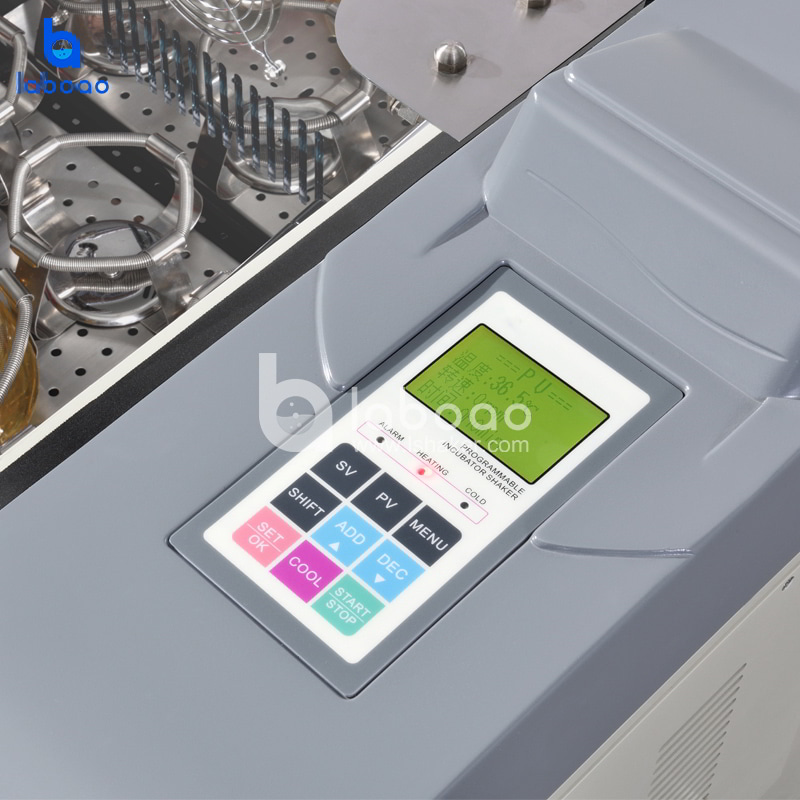

4. The LCD large-screen backlit LCD display double displays each set parameter and measured parameter.

5. A safe, fluorine-free refrigeration system that meets international environmental requirements.

6. Elastic cylinder support is used to ensure smooth opening and closing of the cover.

7. Run the parameter memory function to avoid cumbersome operations.

8. AC induction long life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance free.

9. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.

10. With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.

11. The line that controls the acceleration ensures that the shaker is slowly started and smoothly accelerated to ensure the safety of the experimental samples.

12. Streamlined luxury style with auspicious design concept, ABS special engineering plastic case, large screen tempered hot bending glass window.


Application range

Cell culture

Extraction experiment

Mixing samples

Dyeing and bleaching

Hybrid experiment

Solubility test

Plasmid purification

Bacterial suspension preparation

Elution process

Protein

SPECIFICATIONS


Model

LH-103D

LH-100D

LH-200D

Control method

P.I.D(Microcomputer environment scanning   micro processing chip)

Display method

LCD (Large screen LCD dual display)

Cyclic mode

Forced convection

Oscillation mode

Rotary oscillation

Drive mode

Single-axis balancing device (Chinese patent)

Environmental requirements

Temperature 25 ° C, humidity 20% -90%

Temperature control range

Room temperature +5-60

4-60

Temperature accuracy

±0.1

Temperature uniformity

±1

Performance

Frequency Range

30-600rpm

Rotation accuracy

±1rpm

Amplitude

Φ0-50mm

Security function

Upper and lower temperature deviation alarm;   upper- and lower-line speed deviation alarm, independent over-temperature   protector; open door stop protection; leakage protection, chiller overload   protection.

Accessory function

Speed storage, call recovery, parameter   memory, temperature speed correction, clock display, room temperature /   measured temperature double display.

Programming function

Repeat, step, eight-segment curve programming   settings.

The refrigerant

-

-

CFC-Free (134A) fluorine-free safety   refrigeration system

Cooler

-

-

118W

Heater

150W

400W

400W

Timing range

0-999.59h/ Sustainable

Standard sizes

Rocker size

260*260(mm)

400*370(mm)

420*400(mm)

Number of rocking plates

one

Gross weight

31kg

72kg

100kg

Net weight

54kg

94kg

132kg

Inner cavity size

360*340*280(mm)

410*450*300(mm)

460*500*350(mm)

Dimensions

440*419*420(mm)

610*610*510(mm)

700*740*560(mm)

Package dimensions

560*530*560(mm)

740*710*530(mm)

805*900*760(mm)

Opening height

746(mm)

920(mm)

990(mm)

power

280W

490W

580W

Materia

Motor

60W inverter motor

Inner cavity material

High quality imported stainless steel mirror   panel

Outer box Materia

ABS special engineering plastic case


LH-103D/100D/200D the maximum speed reaches 600rpm/min
