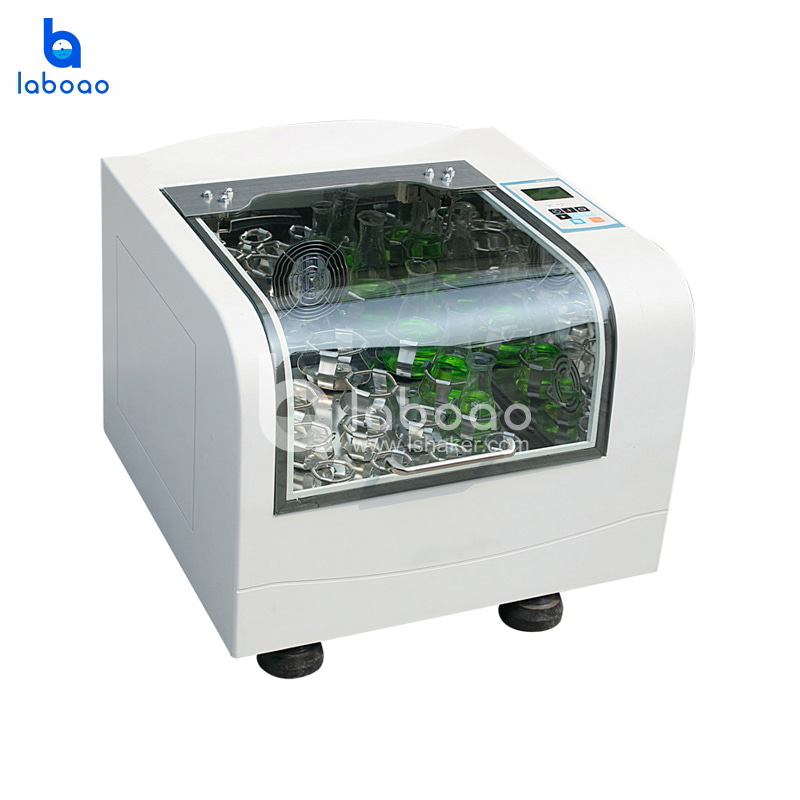

Small Capacity LCD Screen Benchtop Incubator Shaker
LH-100F/LH-200F
The small capacity benchtop lab incubator shaker supplied by LABOAO can meet most organic culture experiments. The shaker can be placed on the table or on the balanced floor. It is suitable for cell culture, extraction experiments and other experiments. It is a standing instrument in the laboratory.
- AmplitudeΦ25mm
- Oscillation modeReciprocating
- Capacity18L/54L/69L
- Rocking plate size260x260mm/400x370mm/420x400mm
OVERVIEW
The small benchtop incubator shaker for lab has a stainless-steel universal clamp, digital display temperature control, stepless speed regulation and good thermal cycle function. It is a multi-purpose biochemical device, which is a plant, biology, microbiology, genetics, virus, environmental protection, medicine and other scientific research. education and production departments for precision culture preparation of indispensable laboratory.
FEATURES
1. The original patented technology of the original single-axis balance drive balancing device (patent type: a single-axis drive rocking balance mechanism; guarantees extremely low energy consumption and noise.
2. The oscillation frequency can be extended over a wide range to 30-400/600 rpm.
3. Intelligent sound and light alarm environment scanning microprocessor controller.

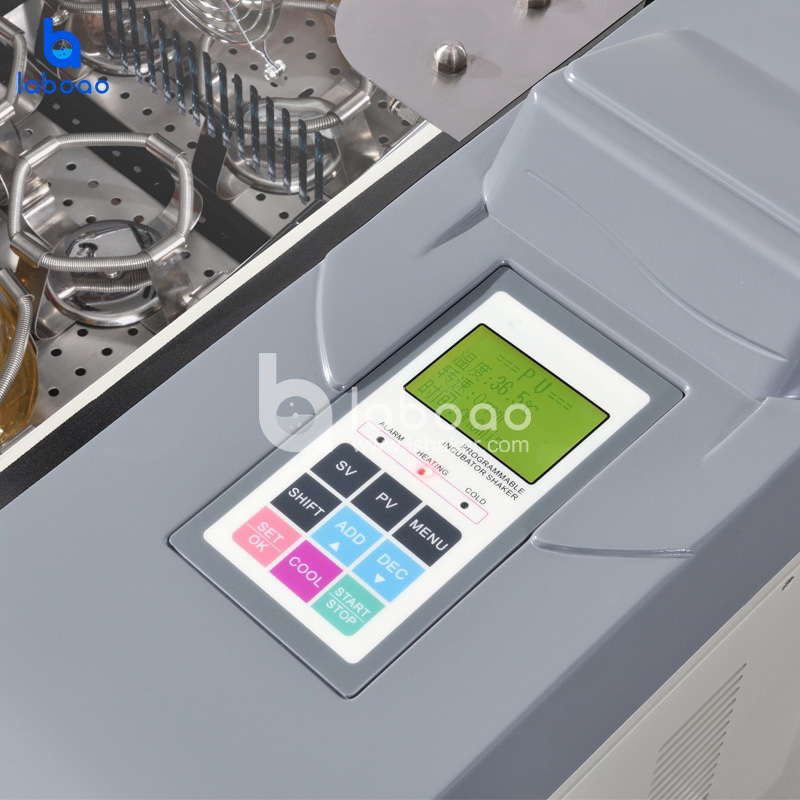

4. The LCD large-screen backlit LCD display double displays each set parameter and measured parameter.
5. A safe, fluorine-free refrigeration system that meets international environmental requirements.
6. Elastic cylinder support is used to ensure smooth opening and closing of the cover.
7. Run the parameter memory function to avoid cumbersome operations.
8. AC induction long life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance free.
9. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.
10. With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.
11. The line that controls the acceleration ensures that the shaker is slowly started and smoothly accelerated to ensure the safety of the experimental samples.
12. Streamlined luxury style with auspicious design concept, ABS special engineering plastic case, large screen tempered hot bending glass window.
Application range
Cell culture
Extraction experiment
Mixing samples
Dyeing and bleaching
Hybrid experiment
Solubility test
Plasmid purification
Bacterial suspension preparation
Elution process
Protein
SPECIFICATIONS
Model | LH-100F | LH-200F | |
Control method | P.I.D(Microcomputer environment scanning micro processing chip) | ||
Display method | LCD (Large screen LCD dual display) | ||
Cyclic mode | Forced convection | ||
Oscillation mode | Reciprocating | ||
Drive mode | Single-axis balancing device (Chinese patent) | ||
Environmental requirements | Temperature 25 ° C, humidity 20% -90% | ||
Temperature control range | Room temperature +5℃-60℃ | 4-60℃ | |
Temperature accuracy | ±0.1℃ | ||
Temperature uniformity | ±1℃ | ||
Performance | Frequency Range | 30-300rpm | |
Rotation accuracy | ±1rpm | ||
Pendulum amplitude | Φ25mm | ||
Security function | Upper and lower temperature deviation alarm; upper- and lower-line speed deviation alarm, independent over-temperature protector; open door stop protection; leakage protection, chiller overload protection. | ||
Accessory function | Speed storage, call recovery, parameter memory, temperature speed correction, clock display, room temperature / measured temperature double display. | ||
Programming function | Repeat, step, eight-segment curve programming settings. | ||
The refrigerant | - | CFC-Free (134A) fluorine-free safety refrigeration system | |
Cooler | - | 118W | |
Heater | 150W | 400W | |
Timing range | 0-999.59h/ Sustainable | ||
Standard sizes | Rocker size | 400*370(mm) | 420*400(mm) |
Number of rocking plates | one | ||
Gross weight | 72kg | 100kg | |
Net weight | 94kg | 132kg | |
Inner cavity size | 410*450*300(mm) | 460*500*350(mm) | |
Dimensions | 610*610*510(mm) | 700*740*560(mm) | |
Package dimensions | 740*710*530(mm) | 805*900*760(mm) | |
Opening height | 920(mm) | 990(mm) | |
Power | 490W | 580W | |
Materia | Motor | 60W inverter motor | |
Inner cavity material | High quality imported stainless steel mirror panel | ||
Outer box Materia | ABS special engineering plastic case | ||
