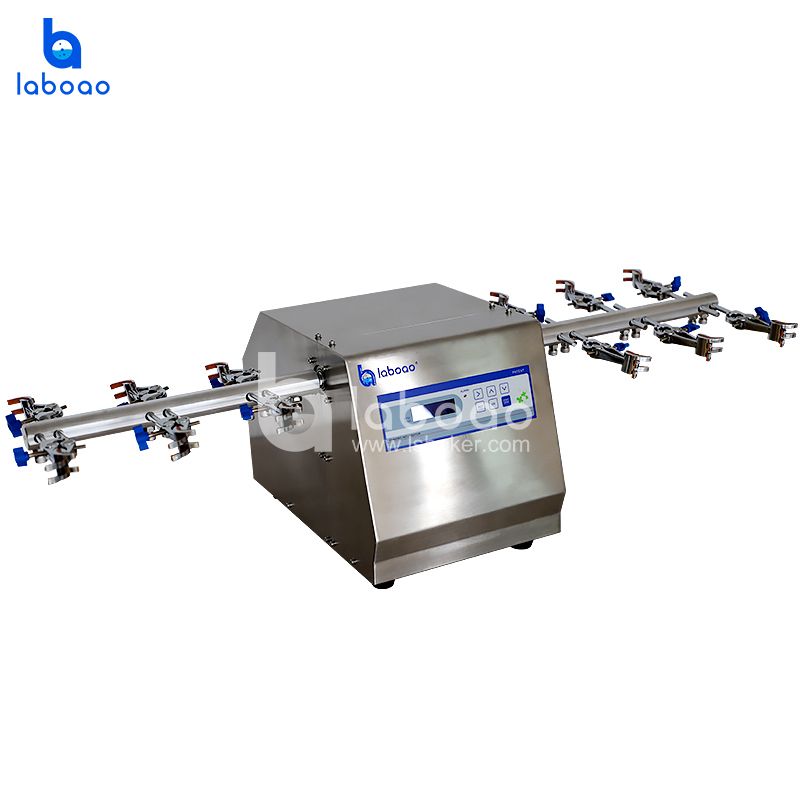

Desktop Digital Wrist Orbital Shaker For Lab
Desktop Digital Wrist Orbital Shaker For Lab

Desktop Digital Wrist Orbital Shaker For Lab

LZD-810
The ZD-810 wrist shaker adopts the maintenance-free design of spherical bearings, which simulates the vibration of the wrist and has a good vibration mixing effect.
  • Amplitude12°
  • Oscillation modeWrist
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

OVERVIEW

This is a desktop shaker that can be used directly in the greenhouse or in the incubator. It is widely used in the fixation of various electrophoresis gels, the shaking and shaking during Coomassie blue staining and decolorization, and the fixation and staining of silver nitrate staining. After the development, fixation and electrophoresis transfer of the X-ray film in the autoradiography experiment, the cellulose membrane is further processed, such as molecular hybridization, antigen-antibody reaction and staining, and cell culture.

FEATURES

1. The oscillation speed can be controlled within the range of 30 to 1000 rpm, the tilt angle: 3, 6, 9, 12 degrees (you can choose one), and the angle is adjustable;

2. It can hold 8 or 16 standard volumetric flasks or 500ml flasks. Suitable for reagent bottles, test tubes, wide mouth bottles, narrow mouth bottles, distillation flasks, separatory funnels, straight mouth bottles, etc.;

3. Leakage current and over current protection system to ensure the safety of operators;

4. The sealed ball bearing transmission does not need to add lubricating oil;

5. 304 high-quality stainless steel wire drawing board host, arm support;

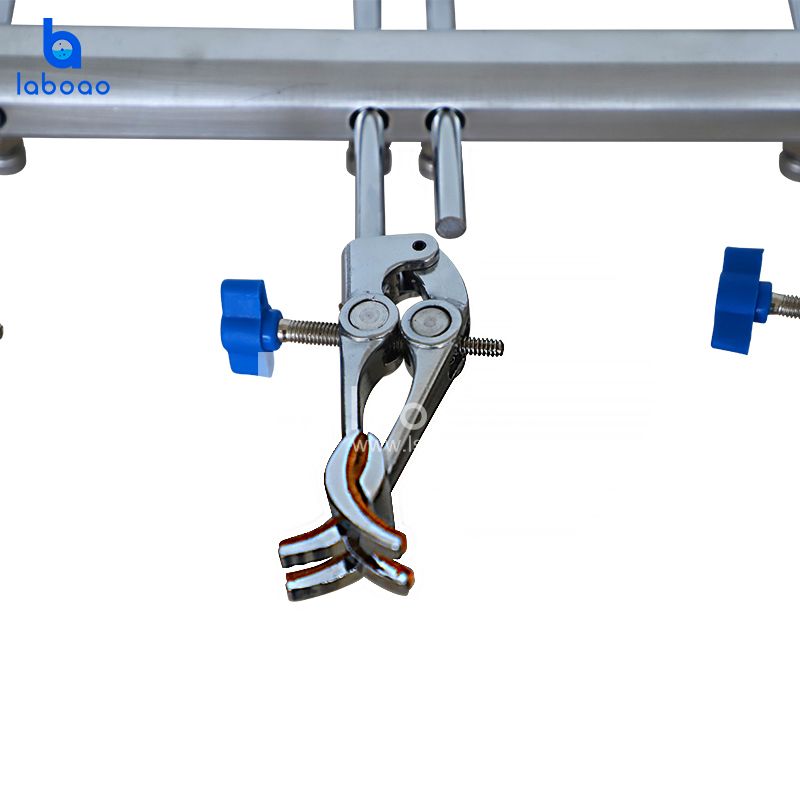

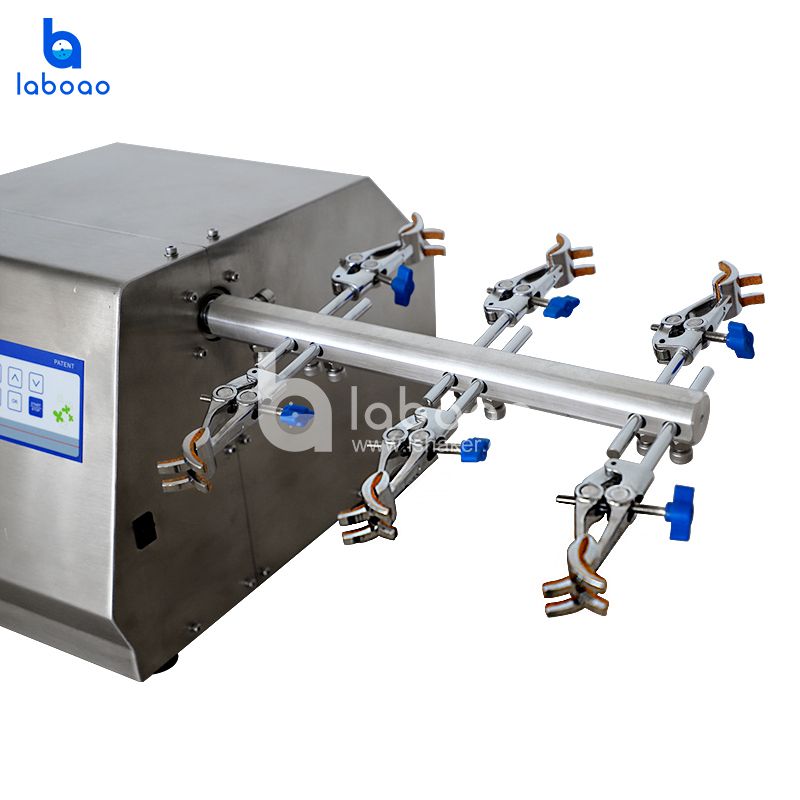

6. The 304 material arm is fixed in place by screws, and can be placed in a container with a diameter of up to 50mm, with a load of 6.8Kg on each side;

7. Suitable working environment: temperature 4-40℃, humidity 20-80%, non-condensing operating conditions make the wrist shaker can be used in incubators, environmental test chambers, refrigerators.

SPECIFICATIONS

Model

LZD-810

Control method

P. I. D   microcomputer environment scanning micro processing chip control

Display method

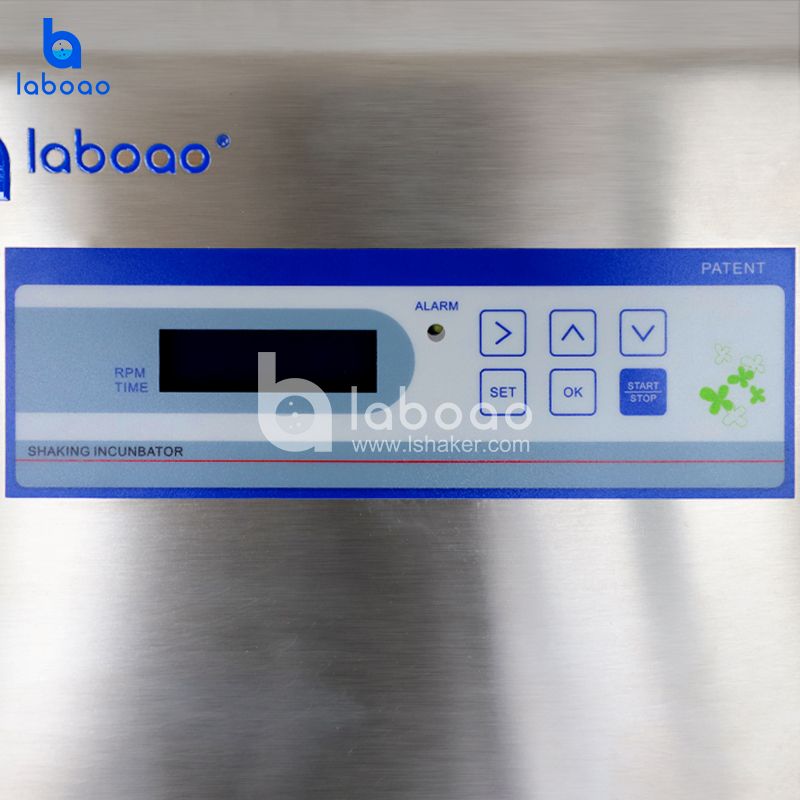

LCD liquid   crystal display

Programming   control

Eight sections   of user-programmed programs

Safety   protection

Automatic   operation, automatic stop, timing operation, clock display, call recovery,   parameter memory, speed storage

Cycle way

Natural   convection

Environmental   requirements

User-specific   constant temperature room or environment

Oscillation mode

Angle   oscillating

Angle

Tilt angle: 3,   6, 9, 12° (you can choose one)

Rotation   frequency

30-600rpm

Rotation   accuracy

±1rpm

net weight

40kg

Host size

272*452*320 (mm)

Overall size

810*452*320 (mm)

Work rate

60W

Motor

Inverter motor

Power supply

AC 200240V 5060HZ

Material quality

The main machine   is made of 304 stainless steel, casting chassis;
